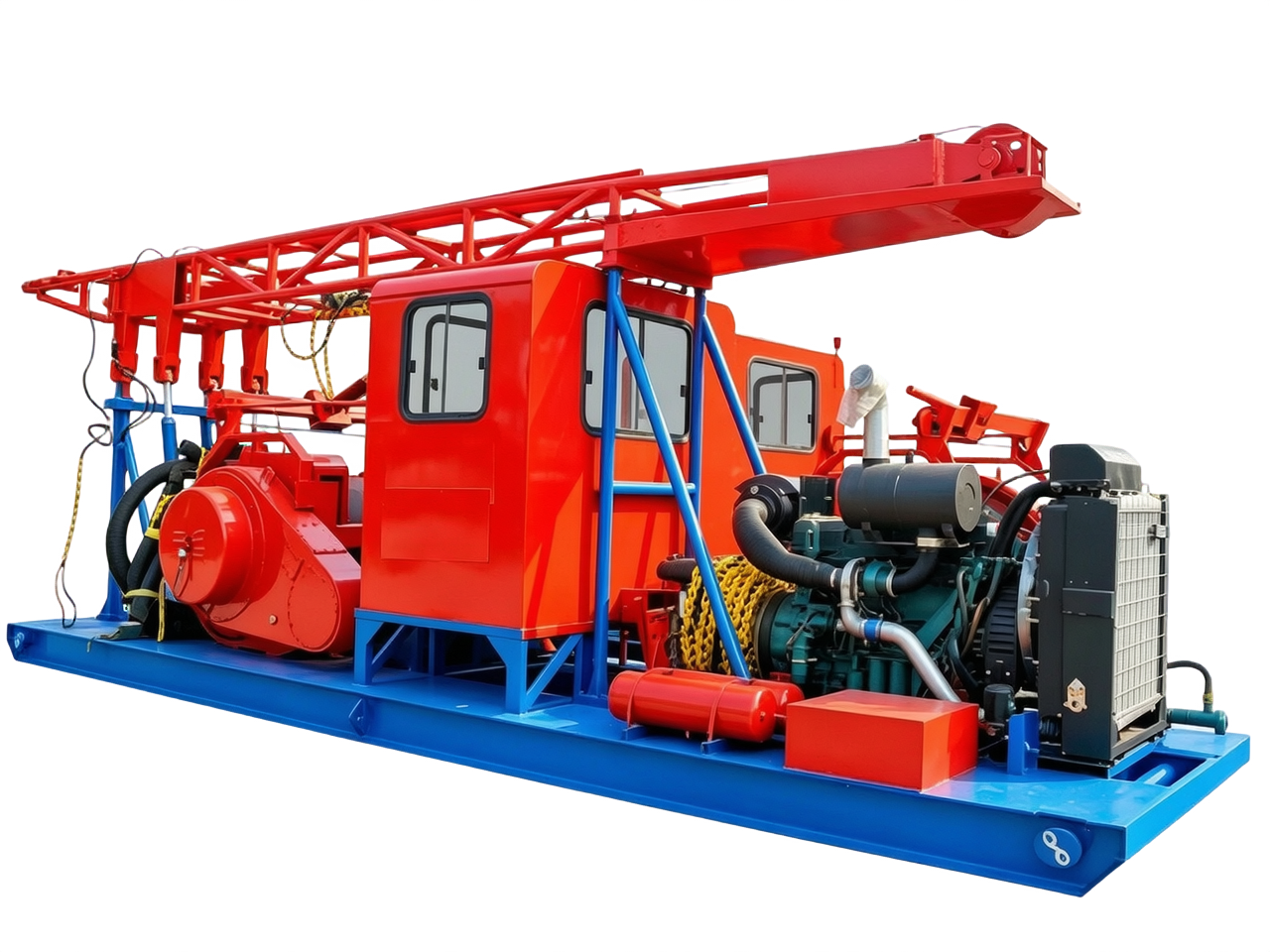

Swabbing unit
The swabbing unit is essential equipment for petroleum extraction. Powered by a winch, the swabbing tool moves up and down inside the wellbore to lift crude oil to the surface. It is used for testing new wells to gather critical data, clearing blockages and paraffin deposits, and supporting production stimulation. By reducing bottomhole pressure, it enhances crude oil inflow into the wellbore.
Product Status
On Sale
Stock Quantity
0 units
Product Details
The swabbing unit is essential equipment for petroleum extraction. Powered by a winch, the swabbing tool moves up and down inside the well to lift crude oil to the surface. It is used for testing new wells to gather critical data, clearing blockages and paraffin deposits, and supporting production stimulation. By reducing bottom-hole pressure, it enhances crude oil inflow into the wellbore.
Model Model | QCY3000/16 |
Engine Power Engine Power | 280 HP |
Maximum lifting force at the drum's maximum diameter Max. pull force at Max. diameter, | 30 kN |
Maximum lifting force at the drum's minimum diameter Maximum pull force at minimum diameter | 80 kN |
Wire Rope Diameter Wireline diameter | 16mm |
Maximum rope capacity of the drum Maximum wireline capacity | 3000m |
Maximum lift speed Maximum lifting speed | 4 m/s |
