Gas-Oil Boosting and Mixed-Transport Unit
The gas-oil boosting and mixed-transport unit uses a low-speed, single-stage, double-acting medium-flow cylinder to pump produced well fluids. Its hydraulic system drives the delivery cylinder's piston for reciprocating motion, enabling mixed-media boosting and transport. The equipment supports remote monitoring, intelligent automatic adjustment, and automatic fault diagnosis for unattended operation.
Product Status
On Sale
Stock Quantity
0 units
Product Details
The gas-oil boosting and mixed-transport unit uses a low-speed, single-stage, double-acting medium-flow cylinder to pump produced well fluids. Its hydraulic system drives the delivery cylinder's piston in reciprocating motion to enable mixed-phase boosting transport. The equipment supports remote monitoring, intelligent automatic adjustment, and automatic fault diagnosis for unattended operation.

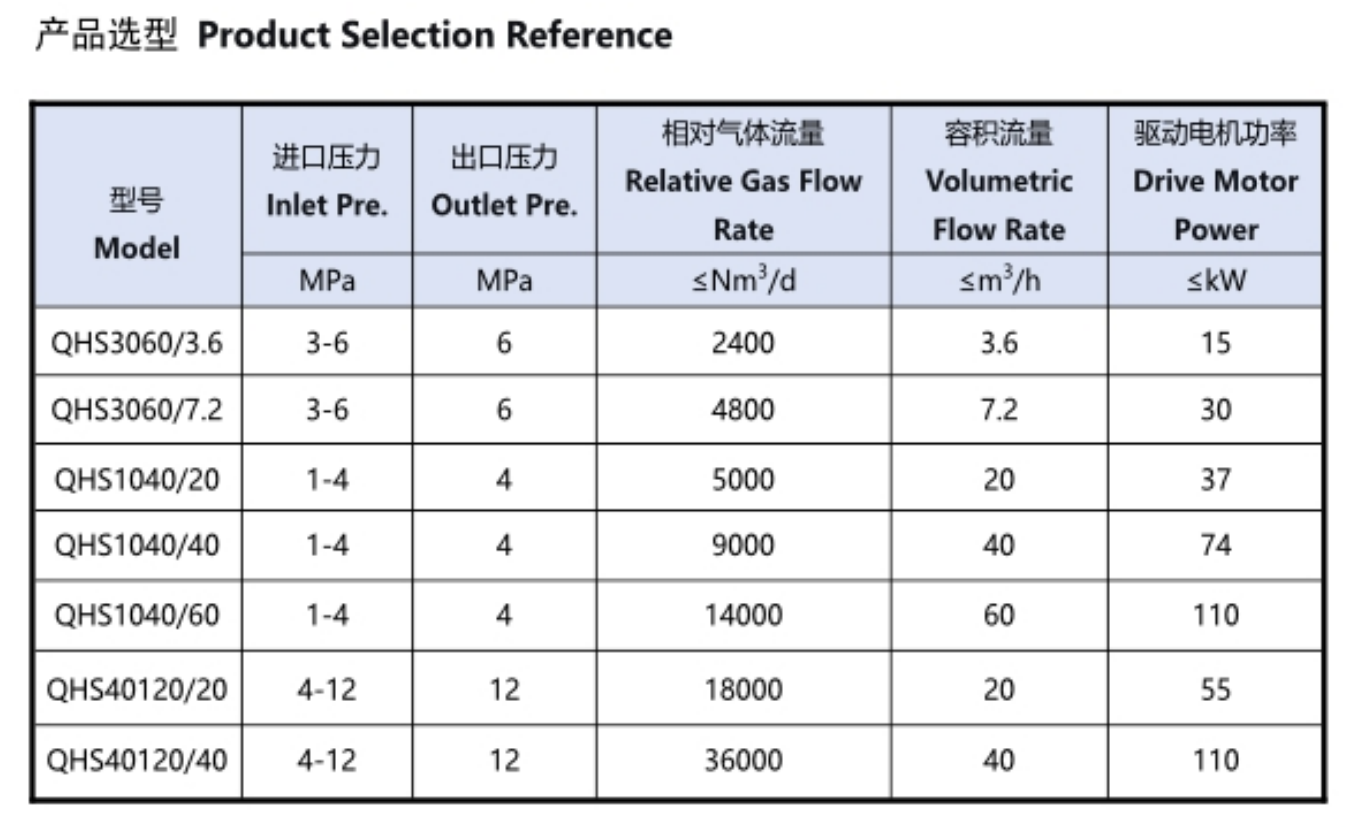

Product SelectionProduct Selection Guide | |||||
ModelModel | Inlet PressureInlet Pre. | Outlet PressureOutlet Pre. | Relative Gas Flow | Volumetric Flow Rate | Motor Power |
Model | MPa | MPa | ≤ Nm³/d | ≤ m³/h | ≤ kW |
QHS3060/3.6 | 3-6 | 6 | 2400 | 3.6 | 15 |
QHS3060/7.2 | 3-6 | 6 | 4800 | 7.2 | 30 |
QHS1040/20 | 1-4 | 4 | 5000 | 20.0 | 37 |
QHS1040/40 | 1-4 | 4 | 9000 | 40.0 | 74 |
QHS1040/60 | 1-4 | 4 | 14000 | 60.0 | 110 |
QHS40120/20 | 4-12 | 12 | 18000 | 20.0 | 55 |
QHS40120/40 | 4-12 | 12 | 36000 | 40.0 | 110 |
