Truck-mounted drilling rig chassis
Our company manufactures various chassis models for drilling and workover rigs, including 6×6, 8×4, 8×6, 8×8, 10×8, 10×10, 12×8, 14×8, 14×10, 14×12, and 14×14. These chassis are designed to support the full XJ250–XJ850 workover rig lineup. Built for versatility across roads, deserts, mountains, and swamps, they deliver powerful traction, superior mobility, and excellent off-road performance. Capable of operating in ambient temperatures from -45°C to +55°C, these chassis have been successfully deployed in numerous domestic and international oilfields.
Product Status
On Sale
Stock Quantity
0 units
Product Details
Our company manufactures a range of drilling and workover rig chassis, including 6×6, 8×4, 8×6, 8×8, 10×8, 10×10, 12×8, 14×8, 14×10, 14×12, and 14×14. These chassis are designed to support the full XJ250–XJ850 workover rig series. Built for all terrains—including roads, deserts, mountains, and swamps—they deliver strong driving power, excellent mobility, and superior off-road performance. They operate reliably in ambient temperatures from -45°C to +55°C and have been deployed in numerous domestic and international oilfields.

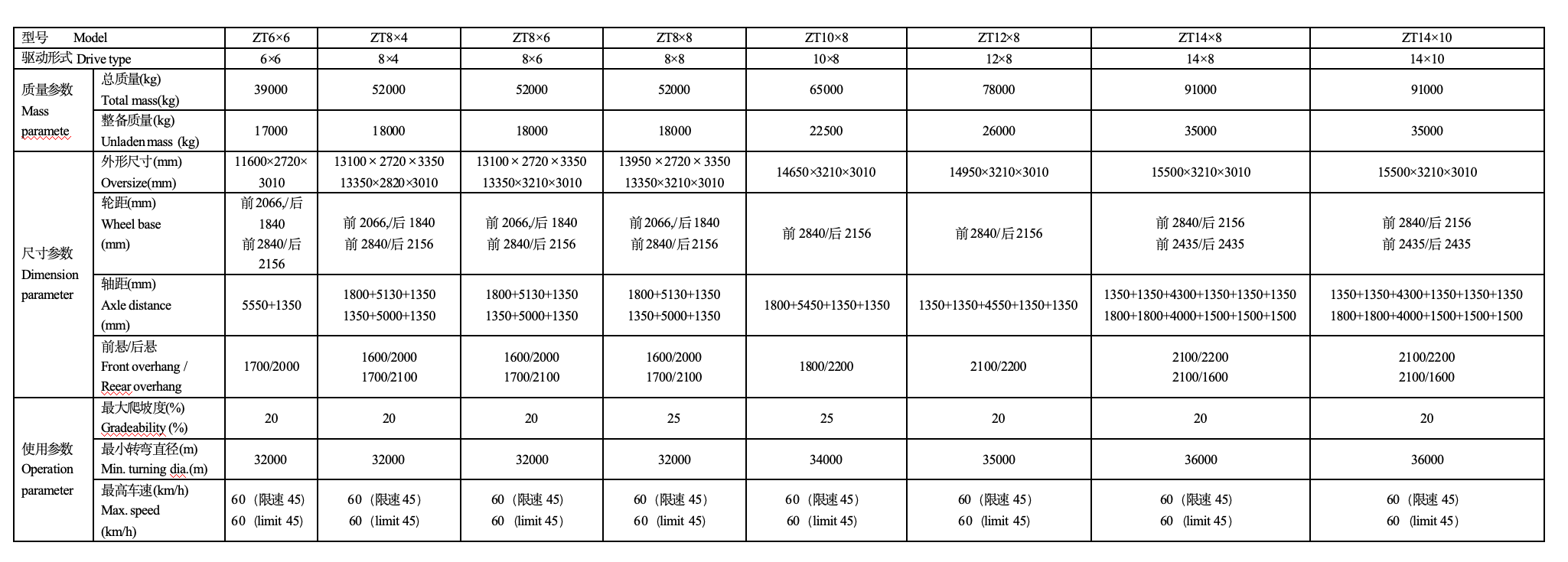

Model | ZT6×6 | ZT8×4 | ZT8×6 | ZT8×8 | ZT10×8 | ZT12×8 | ZT14×8 | ZT14×10 | |
Drive type | 6×6 | 8×4 | 8×6 | 8×8 | 10×8 | 12×8 | 14×8 | 14×10 | |
Quality Parameters Mass parameter | Total Weight (kg) Total Mass (kg) | 39000 | 52000 | 52000 | 52000 | 65000 | 78000 | 91000 | 91000 |
Curb Weight (kg) Unladen weight (kg) | 17000 | 18000 | 18000 | 18000 | 22500 | 26000 | 35000 | 35000 | |
Size Parameters Dimension parameter | Dimensions (mm) Oversize (mm) | 11600×2720× 3010 | 13100×2720×3350 13350×2820× 3010 | 13100×2720×3350 13350×3210× 3010 | 13950×2720×3350 13350×3210× 3010 | 14650×3210× 3010 | 14950×3210× 3010 | 15500×3210× 3010 | 15500×3210× 3010 |
Track (mm) Wheelbase (mm) | Before 2066, after 1840 Before 2840/After 2156 | Before 2066, after 1840 Before 2840/After 2156 | Before 2066, after 1840 Before 2840/After 2156 | Before 2066, after 1840 Before 2840/After 2156 | Before 2840/After 2156 | Before 2840/After 2156 | Before 2840/After 2156 Back Before 2435/After 2435 | Before 2840/After 2156 Before 2435/After 2435 | |
Wheelbase (mm) Axle spacing (mm) | 5550+1350 | 1800+5130+1350 1350+5000+1350 | 1800+5130+1350 1350+5000+1350 | 1800+5130+1350 1350+5000+1350 | 1800+5450+1350+1350 | 1350+1350+4550+1350+1350 | 1350+1350+4300+1350+1350+1350 1800+1800+4000+1500+1500+1500 | 1350+1350+4300+1350+1350+1350 1800+1800+4000+1500+1500+1500 | |
Front overhang / Rear overhang Front overhang / Rear overhang | 1700/2000 | 1600/2000 1700/2100 | 1600/2000 1700/2100 | 1600/2000 1700/2100 | 1800/2200 | 2100/2200 | 2100/2200 2100/1600 | 2100/2200 2100/1600 | |
Use parameters Operation parameter | Maximum Grade (%) Gradeability (%) | 20 | 20 | 20 | 25 | 25 | 20 | 20 | 20 |
Minimum Turning Diameter (m) | 32000 | 32000 | 32000 | 32000 | 34000 | 35000 | 36000 | 36000 | |
Maximum Speed (km/h) Max speed (km/h) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | 60 (speed limit 45) 60 (limit 45) | |
